Ethernet was slower only in one direction on one device

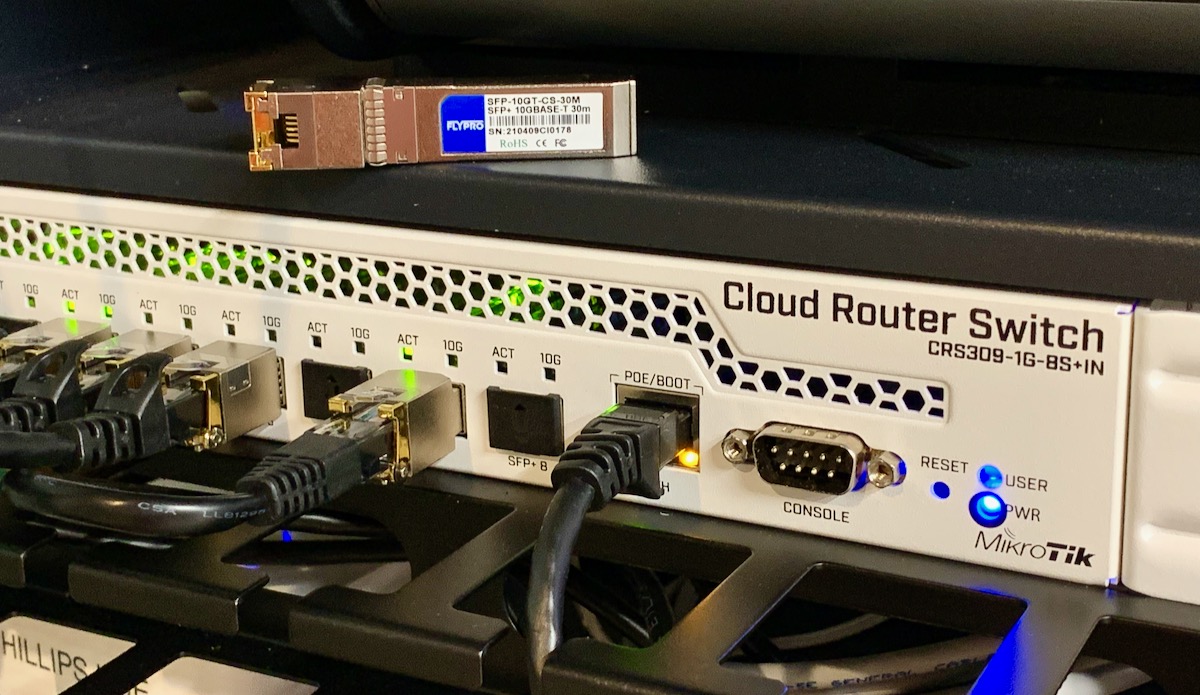

MikroTik Cloud Switch Router with FlyPro Fiber Copper RJ-45 10G Transceiver

There could be a thousand reasons something like this happens, but here's my situation:

A few months ago, when I was testing 10 Gigabit networking on the Raspberry Pi, I noticed something funny when I was doing iperf3 speed tests between devices connected through my MikroTik CRS305 10G switch.

The switch uses SFP+ jacks, and so I was testing a variety of connections—SFP+ to duplex fiber, SFP+ to RJ-45 copper, and SFP+ DAC (Direct Attach Cable) cables. One thing I found very strange was that sometimes, I would get in a situation where a particular device (Pi, my Mac, a Windows PC, or even my NAS) would get the full expected speed in one direction (e.g. my Mac to the NAS), but then if I tested it in reverse (NAS to my Mac), I would get horrible speeds—but only if I was using a 2.5 Gbps NIC on one end.

In the case of the NAS, which has 2.5G Ethernet, I was getting between 50 and 500 Mbps to it, with no consistency in the throughput.

I tested with multiple NICs, I tested both ports of my NAS, and I tested with multiple known-working-to-10G Cat6 patch cables.

And in every case, I was getting this asymmetric speed.

Eventually I bought a QNAP QSW-M2108-2C switch instead, which has 8 built-in 2.5G RJ-45 jacks, and 2 dual-mode SFP+/Copper 10G interfaces.

I plugged everything into it, forgoing fiber or DACs, and the problem went away.

So I shelved the MikroTik switch for the time being.

More MikroTik, More Problems?

Then a few weeks ago, a viewer of my YouTube channel offered me a MikroTik CRS309 switch for a song, so I had to take him up on the offer. I swapped it into my rack, and... exact same issue!

Thinking there's no possible way both MikroTik units could make one port work poorly at random, I finally ordered a new batch of RJ-45 transceivers, and started swapping them out (after going through the whack-a-mole with cables and devices to no avail).

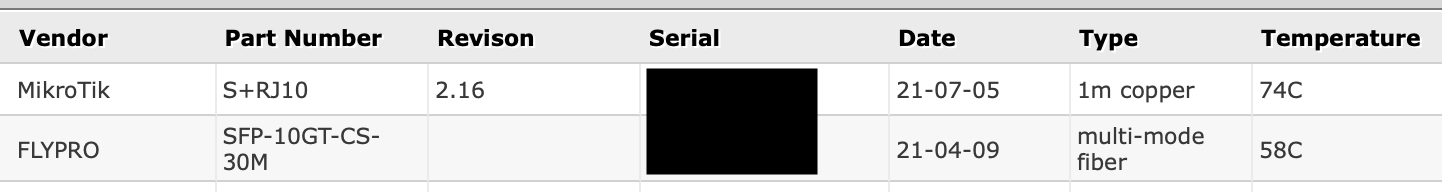

And I found, after all that testing, that the FLYPROFiber SFP-10G-T-30M transceivers—at least some revisions—had trouble when a device negotiated 2.5G speeds through it.

One direction would happily pump through 2.3 Gbps all day, but the other direction would bottleneck at less than 500 Mbps, which was really horrible for editing video and backups to my NAS.

It was the Transceiver, dummy!

So yeah, when you're diagnosing network problems, don't leave any stone unturned. In my case, I was using a transceiver that I'd tested and had working with 2.5 and 10G devices, but in some cases, for some reason, it would only work one way.

Switching to MikroTik's own S+RJ10 transceiver resulted in full 2.3 Gbps bidirectional throughput.

I'm reminded of a time earlier this year when one of my Macs was getting 100 Mbps sometimes, and 10 Gbps others, seemingly depending on the direction the wind was blowing. In that case, it turns out one of the 8 wires in one keystone jack was rubbing against the shielded keystone casing, and causing the entire cable run to downrate to 100 Mbps... but only sometimes.

Always start with the patch cables. Then look at your equipment. Then check your drivers and device CPU/statistics. Then check transceivers, then jacks, terminations, and finally cabling. Networking can be... fun.

While this may not have been the direct cause, engrpiman2's post on Ars Technica was what finally jostled my brain to think to swap transceivers. Not everything that's 10G will also work well with 2.5G and 5GBASE-T devices. Lesson learned.

Comments

I want to just leave a tip regarding smoke testing the network path. If you don't care about the TCP performance of the stack on both ends, it's simplest to run iperf in UDP mode, so you can push as much traffic through the network as your endpoints can. Not having a flow control mechanism like TCP, the UDP flow will hit every interface and if you suspect a particular link, you will see a difference in the bitrate. Without drop counters, using TCP hides this link by link diagnostic tool as the entire path in one direction will be the speed capable according to the lowest common denominator, even if it's just a link that drops a packet from time to time.

Good point. You can also change the TCP window size and that can help pinpoint some weird conditions. There's a lot to iperf/iperf3 that I am still pretty green with.
